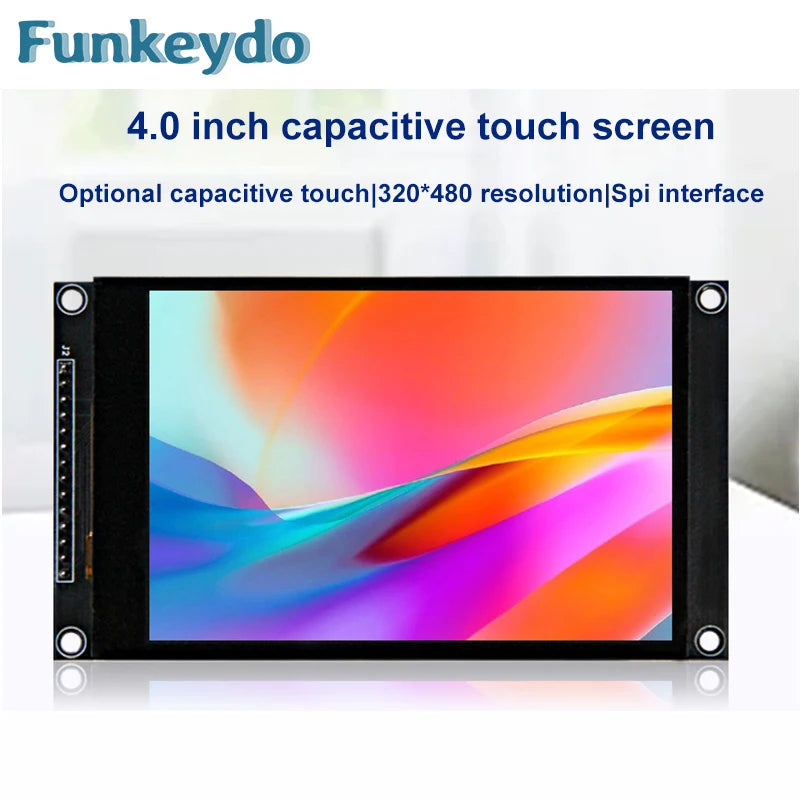

LCD display 6707RRX 4.0 inch 320X480 SPI Serial TFT LCD Display Optional Capacitive Touchscreen Module for ESP32/STM32/Arduino UNO&Mage2560/C51/CH32

Name

Parameter

LCD Parameters

Screen Size

4.0 inch

Screen Type

TNIPS

Resolution

320xRGBx480 (pixels)

Active Area (AA area)

55.68(W)x83.52(H)(mm)

Number of Colors(Max)

16.7M

Driver IC

ST7796S

Display Interface

4-Line SPI

Pixel Size

0.174(H)x0.174(mm)

View Angle

12 O'CLOCK

Brightness(TYP)

300(cd/m2)

Backlight Type

White LED*8

Operation Temperature

-10~50(℃)

Storage Temperature

-20~60(℃)

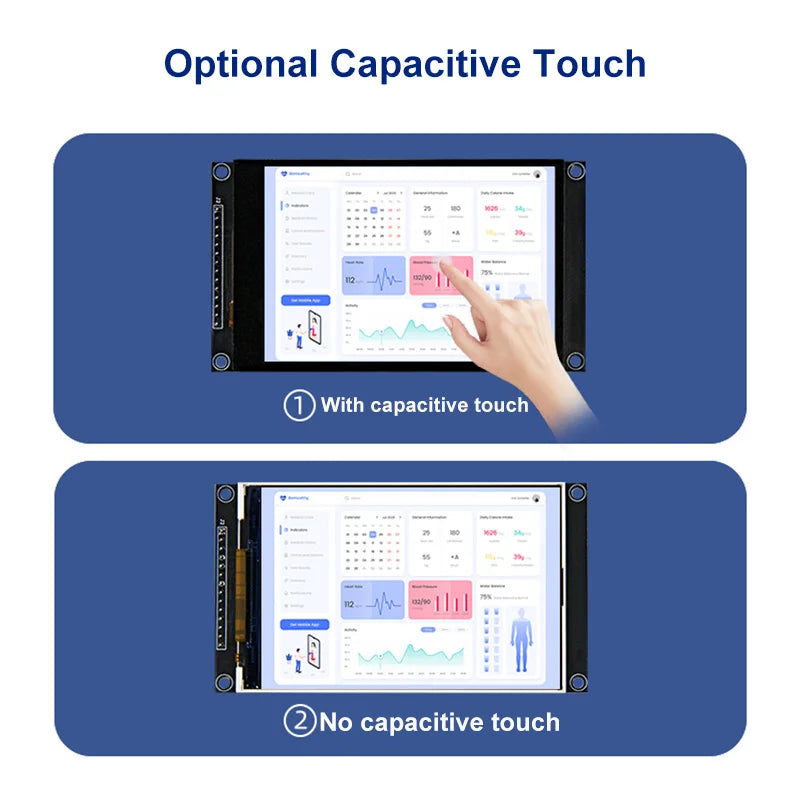

Touch Screen Parameters

Touch Active Area

4.0 inch

Touch Screen Type

Capacitive Touch Screen

Touch Screen Resolution

320x480(pixels)

Driver IC

FT6336U

Touch Screen Visual Area

55.98(W)x83.82(H)(mm)

Communication Interface

IIC

Operation Temperature

-20~70(℃)

Storage Temperature

-30~80(℃)

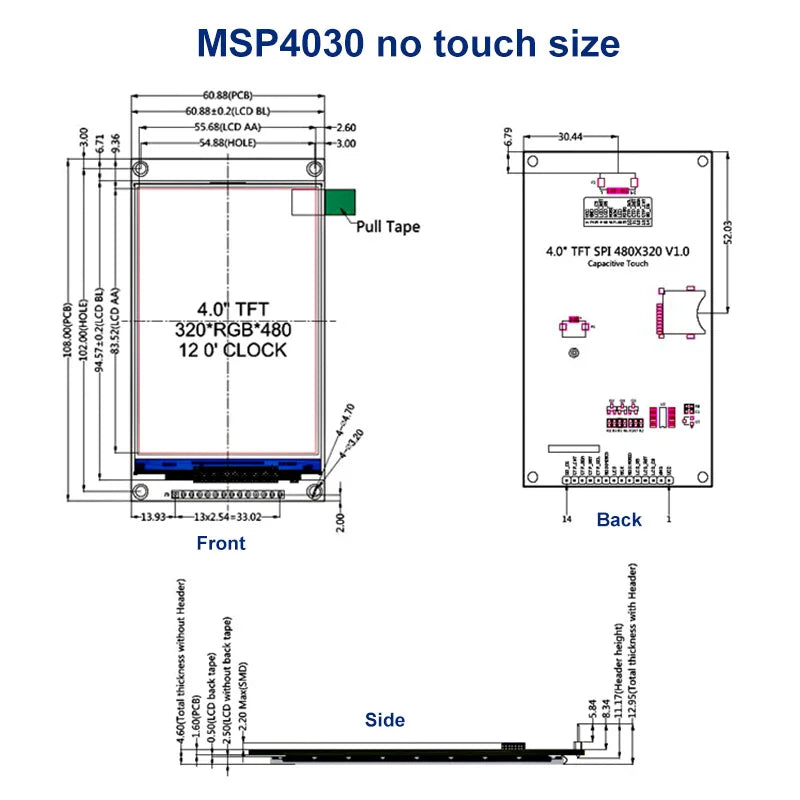

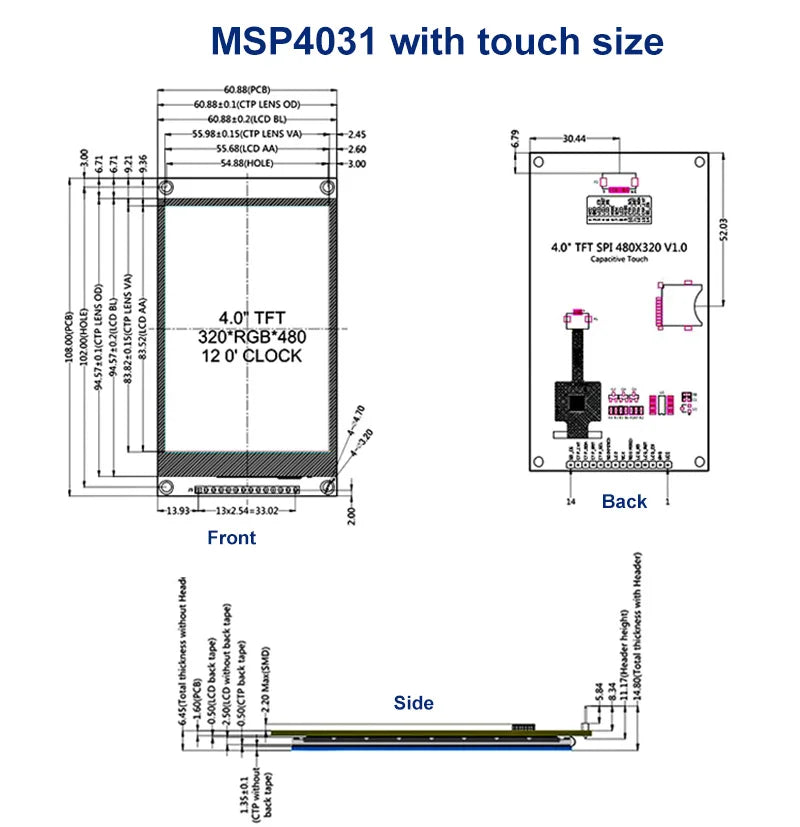

Size Parameters

TFT Outline Size

60.88±0.2(W)x94.57±0.2(H)x2.5±0.1(D)(mm)(Excluding cables and adhesive backing)

Touch Screen Outline Size

60.88±0.1(W)x94.57±0.1(H)x1.35 (D)(mm)(Excluding cables and adhesive backing)

Module Outline Size

NO Touch Screen:60.88(W)x108.0(H)x12.95(D)(mm)(including Pin Header)

Electrical Parameters

Working Voltage

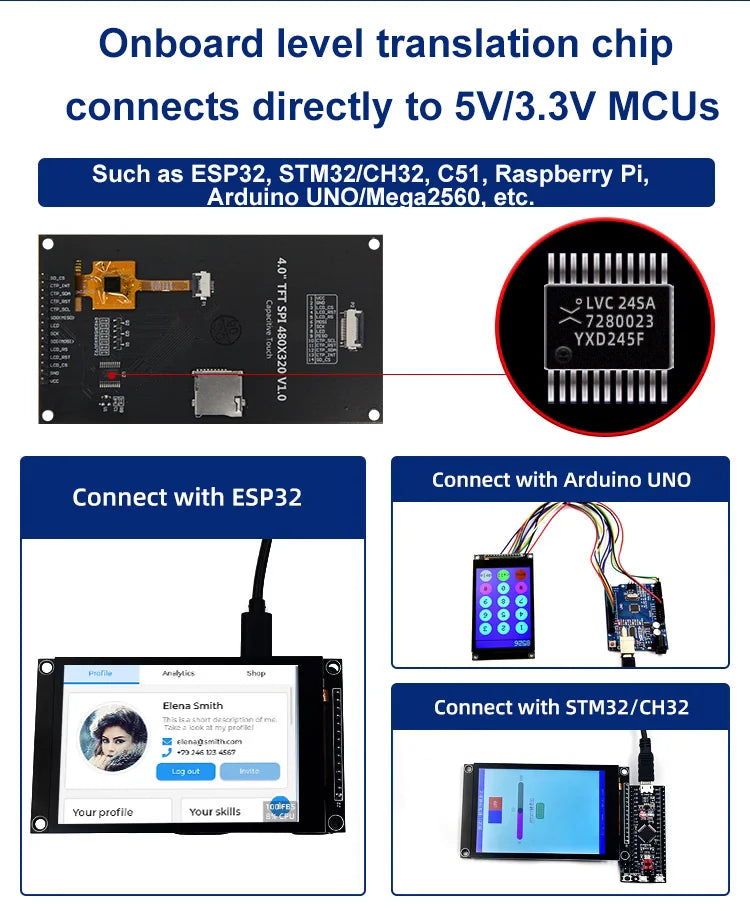

5.0 V/3.3V(Recommended to connect to 5V)

Backlight Current

103 mA

Power

0.5 W

Other Parameters

SKU

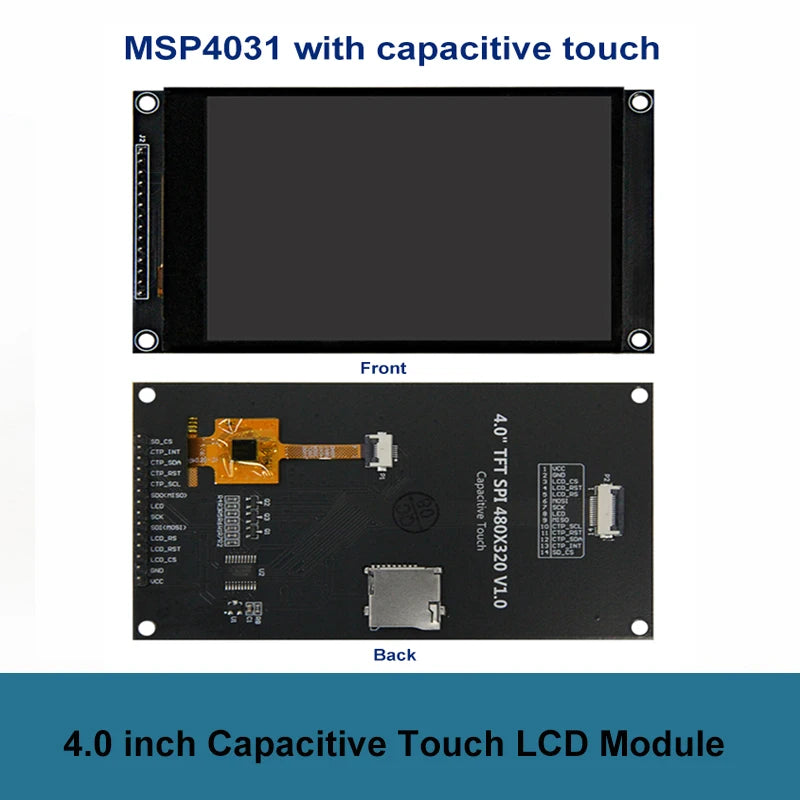

Have Touch Screen : MSP4031

Interface

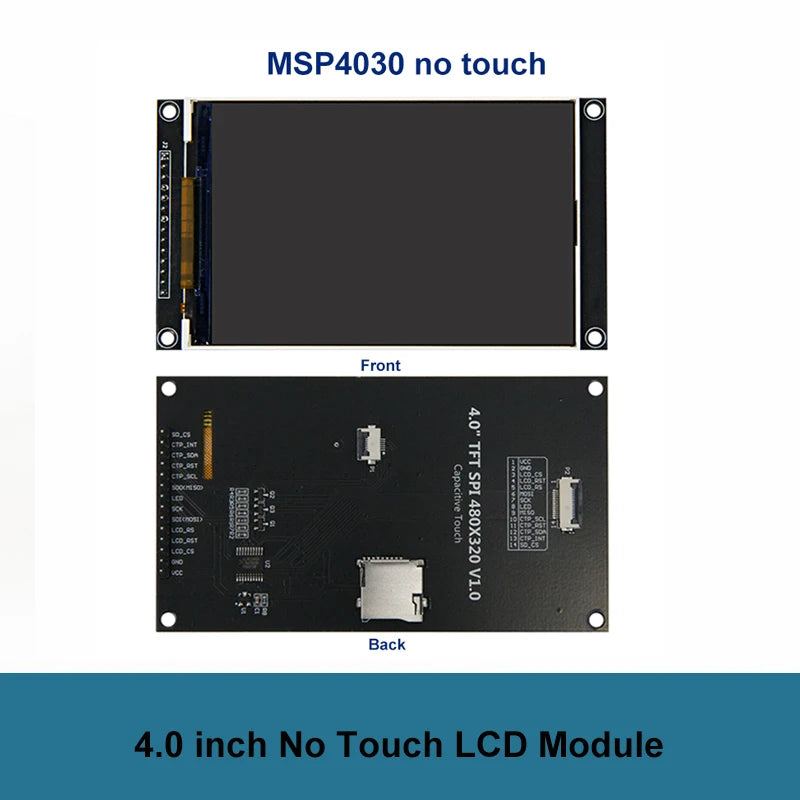

14P 2.54mm spacing Header and 0.5mm spacing FPC seat

Weight(including package)

MSP4031: 76g
