LCD display 6502H 5402

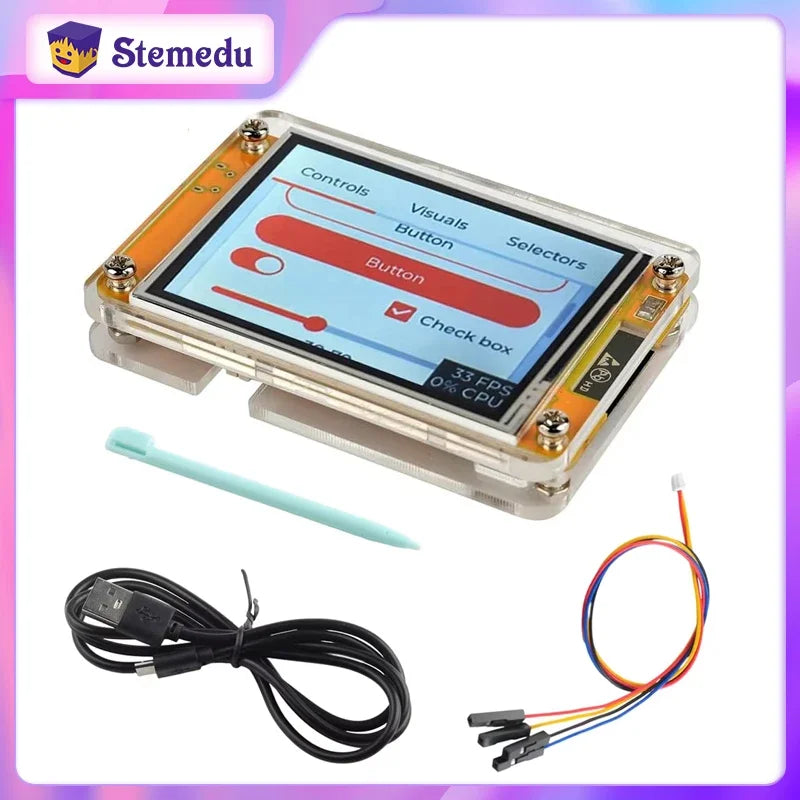

2.8inch ESP32 Module TFT LCD Display with Acrylic Case Dual-core ESP32-2432S028R WIFI+BT 240X320 ILI9341 Resistive Touchscreen

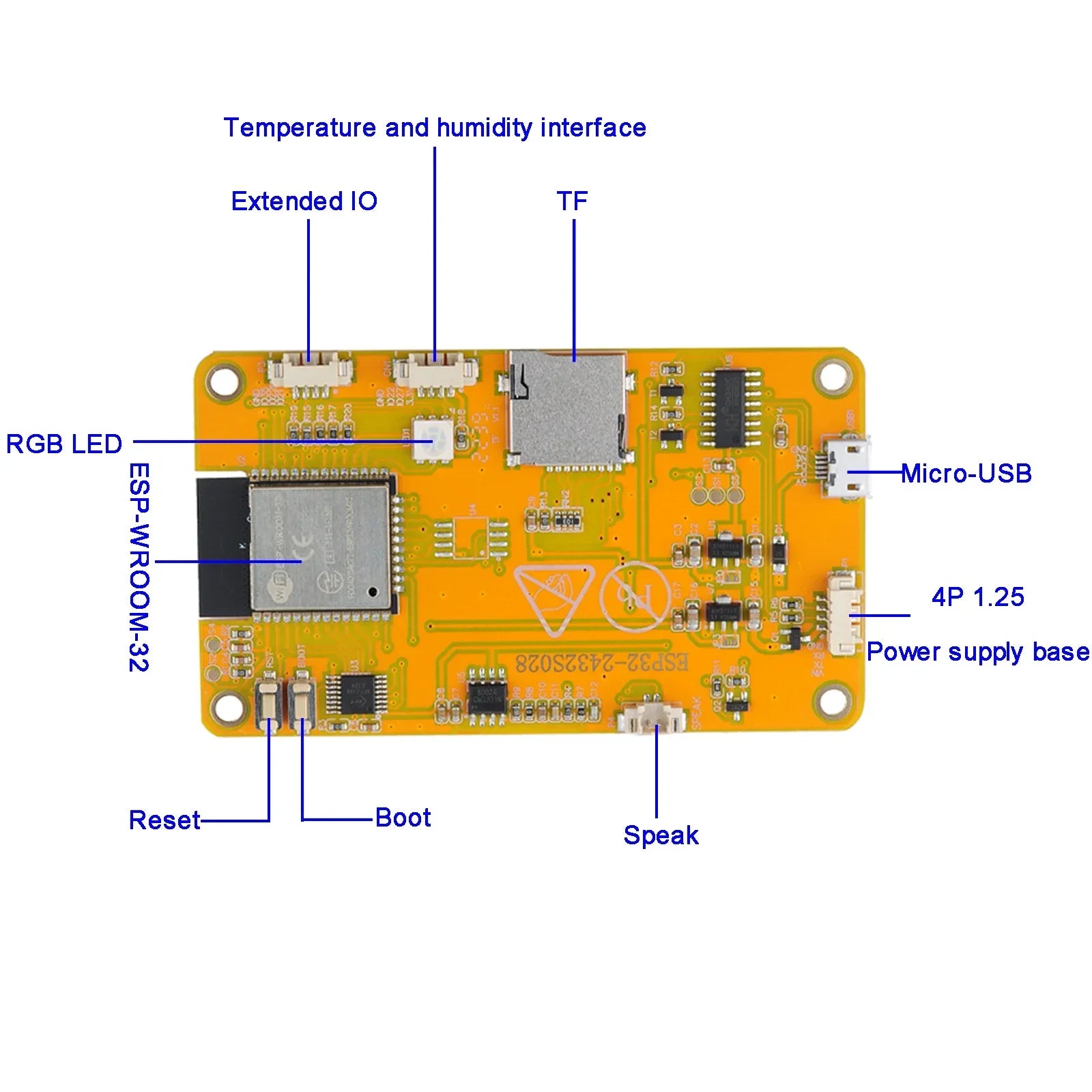

This LCD module uses ESP32-WROOM-32 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Blue-tooth functions, the main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB+4MB, The display resolution is240x320 ,resistive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photo sensitive circuit and RGB-LED control circuit. TF-card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface, this module supports development in Arduino-IDE, ESP IDE,Micropy-thon and Mi-xly.

Features:

2.8-inch color screen, support 16BITRGB65K color display, display rich colors

240X320 resolution

The sample program has been programmed in the factory and can be plugged in

With TF-card slot for easy expansion storage

Provide arduino library functions and sample programs to facilitate rapid secondary development

Support one-click download program

Military-grade process standards, long-term stable work

Parameters:

Display color: RGB 65K color

Resistive touch: ESP32-2432S028R

Size: 2.8 inch

Type: TFT

Driver chip: ILI9341

Resolution: 320 x 240 (Pixel)

Effective display area: 43.2 x 57.6(mm)

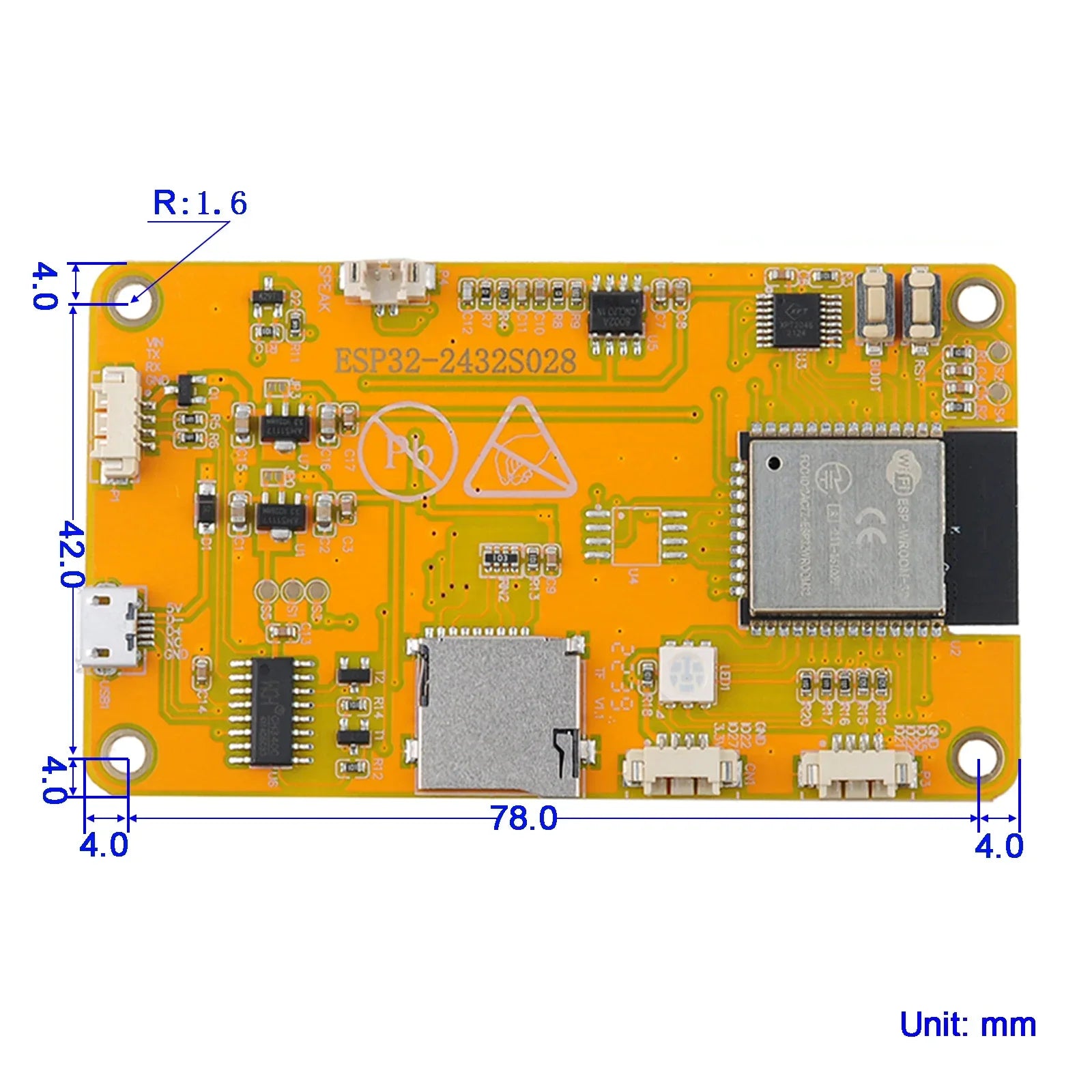

Module size: 50.0 x 86.0(mm)

View: >60°

Operating temperature: -20C~70℃

Storage temperature: -30℃~80℃

Operating Voltage: 5V

Power consumption: About 90mA

Product weight: About 50g

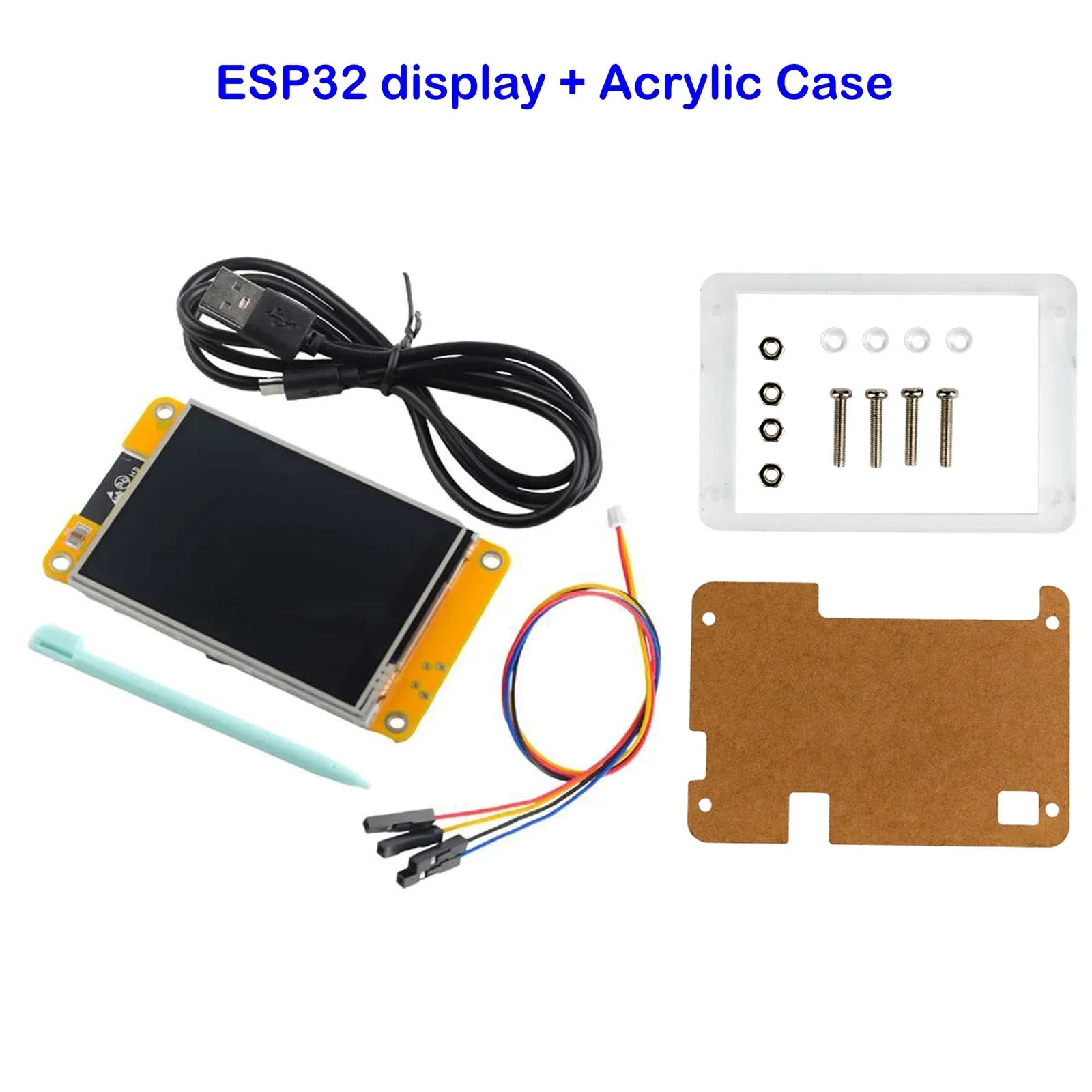

Package includes:

1 X 2.8'' ESP32 Dispaly Module

1 X USB-Cable

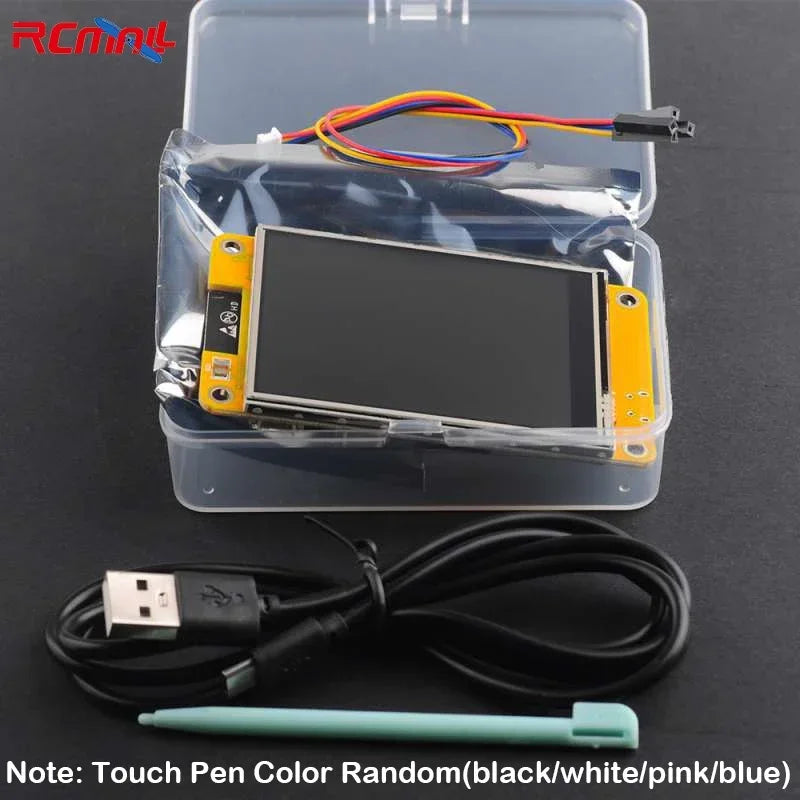

1 X Touch Pen ( Color: pink or white or black or green)

1 X 4P Connector Cable

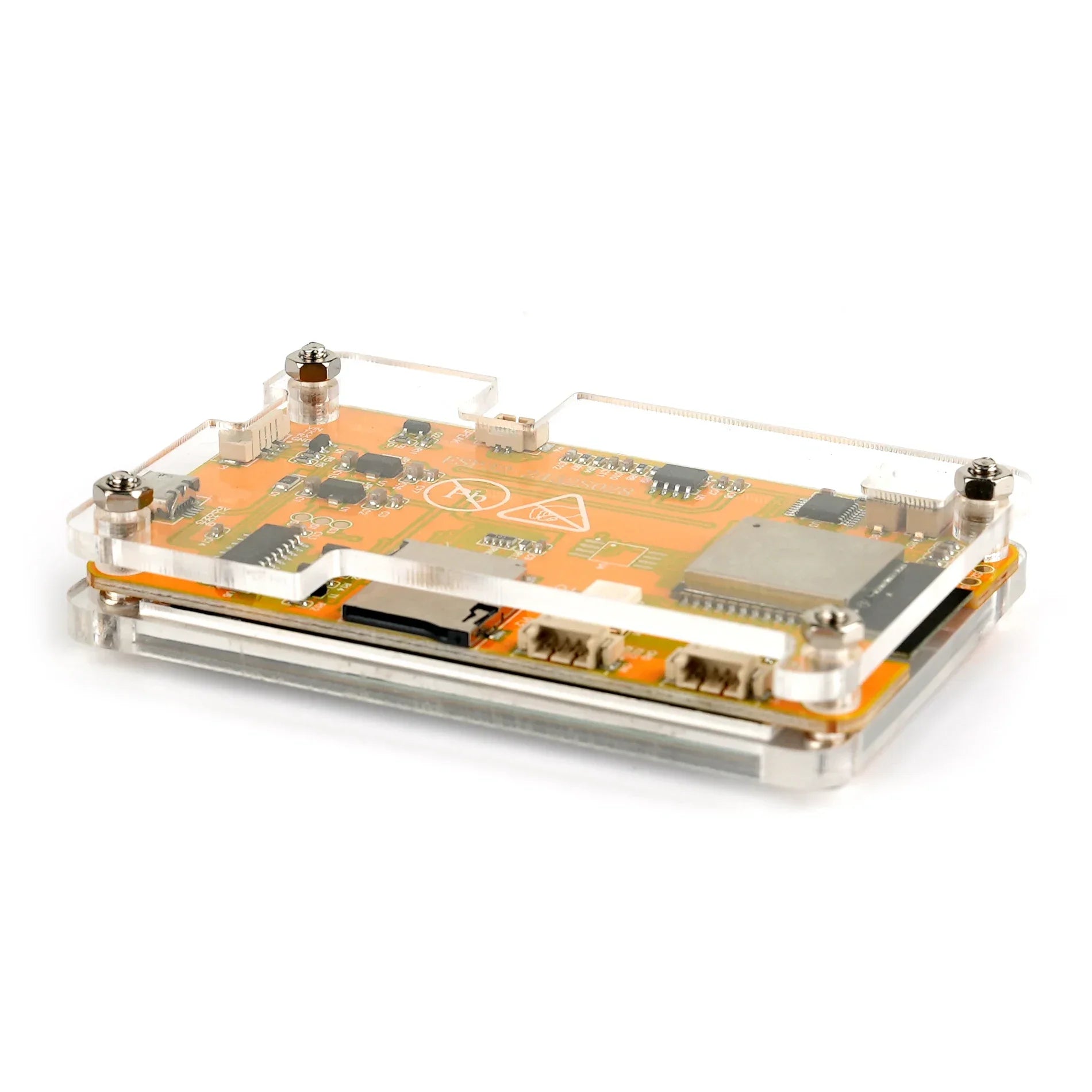

1 X Acrylic case for ESP32 2.8-inch resistive touch screen
